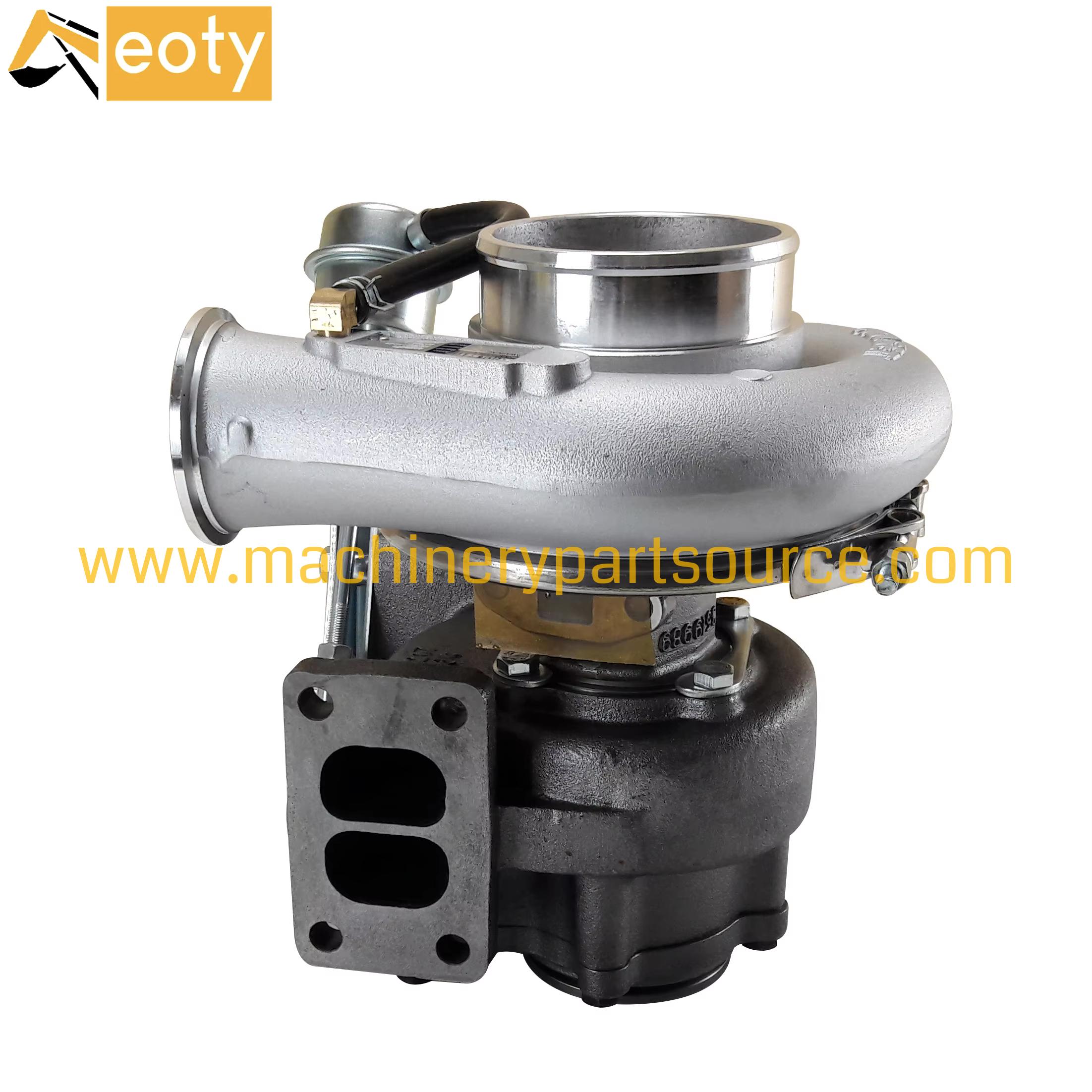

HX35W Turbocharger 4038471 4089136 6738-81-8192 for Cummins 6BT 6BTAA 5.9 Engine | PC220-7

Product Details

Product Overview

This high-performance HX35W turbocharger is a direct replacement for Cummins 6BT, 6BTAA, and 6BTAA5.9 diesel engines, commonly used in Komatsu PC220-7 excavators and other heavy equipment. Engineered to restore original engine power and efficiency, this unit is manufactured to meet or exceed OEM specifications. We ship globally to major industrial markets including North America, Europe, the Middle East, Southeast Asia, and Australia, ensuring fast and reliable delivery for your B2B procurement needs.

Key Features & Benefits

• OEM Specification: Manufactured to match the exact dimensions and performance of the original Cummins HX35W turbocharger, ensuring a seamless bolt-on replacement.
• Enhanced Durability: Constructed with high-grade cast iron housings and precision-balanced turbine wheels to withstand high exhaust temperatures and heavy load cycles.
• Improved Fuel Efficiency: Optimized compressor wheel geometry provides excellent boost pressure across the RPM range, reducing fuel consumption and exhaust emissions.
• Rigorous Testing: Every unit undergoes 100% performance testing for boost pressure, oil seal integrity, and shaft play before shipment.
• Cost-Effective Solution: Offers a high-quality alternative to expensive OEM parts without compromising on reliability or service life.

Technical Specifications

OEM Cross-Reference

This turbocharger is a direct replacement for the following OEM and aftermarket part numbers:

• Cummins OEM: 4038471, 4089136
• Komatsu OEM: 6738-81-8192, 6738-81-8190
• Holset OEM: HX35W (Original Equipment Manufacturer)
• Alternate References: 4038471RX, 4089136RX (Remanufactured), 3537302

Compatibility

This turbocharger is specifically designed for the following applications:

• Engine Models: Cummins 6BT 5.9L, 6BTAA 5.9L, 6BTAA5.9 (B-Series)
• Excavators: Komatsu PC220-7, PC200-7, PC210-7
• Other Equipment: Dodge Ram 2500/3500 (1998.5-2002 with 5.9L 24V), Ford Power Stroke (specific applications), various agricultural and industrial machinery using the 6BT platform.

Note: Always verify your exact engine block and turbo mounting flange configuration before ordering.

Global Supply & Distribution

We maintain a robust global supply chain to ensure fast and reliable delivery to B2B customers worldwide. Our distribution network covers:

• North America: Fast shipping to Los Angeles, Houston, Chicago, and New York.
• Europe: Regular deliveries to Rotterdam, Hamburg, and Antwerp.
• Asia-Pacific: Direct shipping to Singapore, Shanghai, and Sydney.
• Middle East & Africa: Serving Dubai, Jeddah, and Johannesburg.

We offer flexible logistics options including air freight (DDP/DAP) and sea freight (FOB/CIF) to meet your project timelines. Our export team ensures all documentation (Certificate of Origin, Bill of Lading, Commercial Invoice) is compliant with international trade regulations.

Quality Assurance

• Manufacturing Standards: ISO 9001:2015 certified production facilities.
• Testing: 100% cold and hot spin testing to verify boost pressure, oil flow, and vibration levels.
• Warranty: 12-month warranty against manufacturing defects covering housing cracks, bearing failure, and shaft damage under normal operating conditions.
• Material Certification: All castings are sourced from certified foundries with full traceability.

FAQ

Q: Will this HX35W fit my Cummins 6BT engine without modification?

A: Yes, this is a direct bolt-on replacement for the original Holset HX35W turbocharger. It matches the standard T3/T4 turbine inlet flange and the 4-bolt compressor outlet. However, you must check the oil drain flange orientation and wastegate actuator linkage position, as these can vary slightly between industrial (Komatsu) and automotive (Dodge) applications. We recommend comparing the “clocking” of the compressor housing with your old unit.

Q: What maintenance is required after installing this turbo?

A: Proper break-in is essential. After installation, run the engine at idle for 2-3 minutes to ensure oil pressure reaches the turbo bearing. Do not immediately rev the engine. Check for oil or air leaks at all connections. We recommend changing the engine oil and filter at the time of installation to prevent contamination of the new turbo bearings. Always allow the turbo to cool down by idling for 1-2 minutes before shutting off the engine after heavy use.

Q: What are the signs of a failing turbocharger on my Komatsu PC220-7?

A: Common symptoms include: 1) Loss of engine power and black smoke under load (insufficient boost). 2) Whining or screeching noise from the turbo area (worn bearings or damaged impeller). 3) Excessive oil consumption and blue smoke from the exhaust (oil seal failure). 4) Excessive shaft play. If you notice any of these, immediately inspect the turbo for damage to prevent debris from entering the engine’s intake system.
