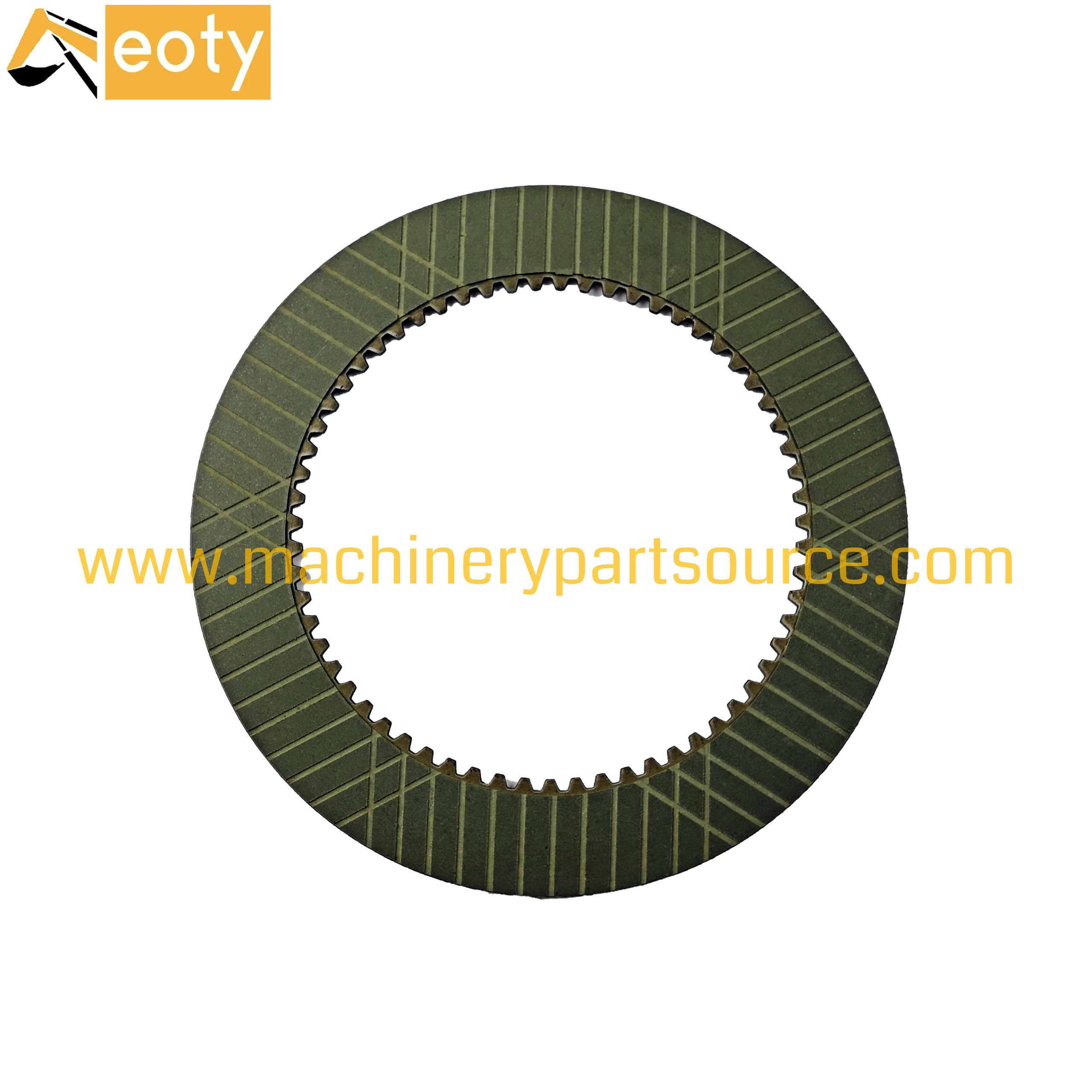

Friction Plate 63 Teeth, Outer Diameter 180mm, Inner Diameter 124mm, Width 28mm, Thickness 3.5mm

Product Details

Product Overview

This high-precision Friction Plate is engineered for heavy-duty transmission and clutch systems in a wide range of industrial and construction machinery. Featuring 63 internal teeth, an outer diameter of 180mm, an inner diameter of 124mm, a width of 28mm, and a thickness of 3.5mm, this component is designed to meet OEM size specifications. It is commonly used in the drivetrain assemblies of excavators, trucks, forklifts, bulldozers, buses, and loaders, providing reliable torque transmission and smooth engagement.

Manufactured to exacting tolerances, this friction plate ensures consistent performance under high-stress operating conditions. The specific tooth count and dimensional profile are critical for correct spline engagement and alignment within the clutch pack, making this a direct replacement for original equipment parts. This part is ideal for B2B buyers seeking a cost-effective, durable solution for fleet maintenance or aftermarket supply chains.

Key Features & Benefits

• Precision Dimensional Fit: Manufactured to exact OEM specifications with an outer diameter of 180mm, inner diameter of 124mm, width of 28mm, and thickness of 3.5mm, ensuring seamless installation and operation.
• Optimized Spline Engagement: The 63 internal teeth are precisely cut to match OEM hub splines, reducing wear and ensuring reliable power transfer in high-torque applications.
• High-Durability Material: Constructed from premium-grade friction materials designed to withstand high heat and pressure, extending service life in demanding environments.
• Versatile Application: Compatible with a wide range of heavy machinery including excavators, trucks, forklifts, bulldozers, and loaders, reducing inventory complexity.
• Cost-Effective Replacement: Offers the lowest price advantage without compromising on quality, making it an ideal choice for bulk procurement and maintenance budgets.
• Rigorous Quality Control: Each plate undergoes outgoing video inspection and machinery test reporting to guarantee performance and reliability.

Technical Specifications

OEM Cross-Reference

This friction plate is manufactured to match OEM size specifications. While no specific OEM part numbers were provided in the source data, the dimensional profile (63T, OD 180mm, ID 124mm, Width 28mm, Thickness 3.5mm) is a common standard used across multiple heavy equipment brands. Please verify your original part dimensions against the specifications listed above to confirm compatibility. For assistance with cross-referencing your specific OEM number, please contact our sales team with your original part details.

Compatibility

This friction plate is commonly used for transmission and clutch systems in the following equipment types:

• Excavators
• Trucks
• Forklifts
• Bulldozers
• Buses
• Loaders

Note: Fitment is inferred based on standard industry applications. Always verify physical dimensions against your original part before installation.

Global Supply & Distribution

We offer worldwide shipping capabilities to support B2B buyers across the globe. Our distribution network ensures fast and reliable delivery to major industrial centers and ports in North America, Europe, Asia-Pacific, the Middle East, and South America. We maintain a robust export infrastructure to handle bulk orders with efficient logistics and customs compliance.

With years of experience in international trade, we are well-versed in export documentation, packaging standards, and shipping requirements for heavy equipment parts. Whether you require air freight for urgent orders or sea freight for cost-effective bulk shipments, we can tailor the logistics to meet your supply chain needs.

Quality Assurance

We adhere to rigorous manufacturing standards to ensure every friction plate meets the demands of heavy-duty diesel applications. Each component is subject to outgoing video inspection and machinery test reporting, providing verifiable quality assurance for our buyers.

All products come with a standard 6-month warranty against manufacturing defects. Our testing procedures include dimensional verification, tooth profile inspection, and material integrity checks to confirm the plate meets the specified OEM tolerances. We are committed to delivering parts that perform reliably in the field.

FAQ

Q: How do I confirm this friction plate is compatible with my equipment?
A: The most reliable method is to measure your original friction plate’s dimensions. Verify the outer diameter (180mm), inner diameter (124mm), width (28mm), thickness (3.5mm), and count the internal teeth (63). If all measurements match, the plate is a direct fit. If you have an OEM part number, please share it with our support team for cross-referencing.

Q: What is the recommended installation procedure for this friction plate?
A: Installation should be performed by a qualified technician. Ensure the clutch hub splines are clean and free of debris. Soak the new friction plate in transmission fluid (if specified by your equipment manufacturer) before installation. Align the internal teeth with the hub splines and seat the plate fully. Always follow the torque specifications and assembly sequence outlined in your equipment’s service manual.

Q: How should I store spare friction plates?
A: Store friction plates in a cool, dry environment away from direct sunlight and moisture. Keep them in their original packaging to prevent contamination from dust or oil. Avoid stacking heavy items on top of the plates to prevent warping. Proper storage ensures the friction material remains in optimal condition until installation.
