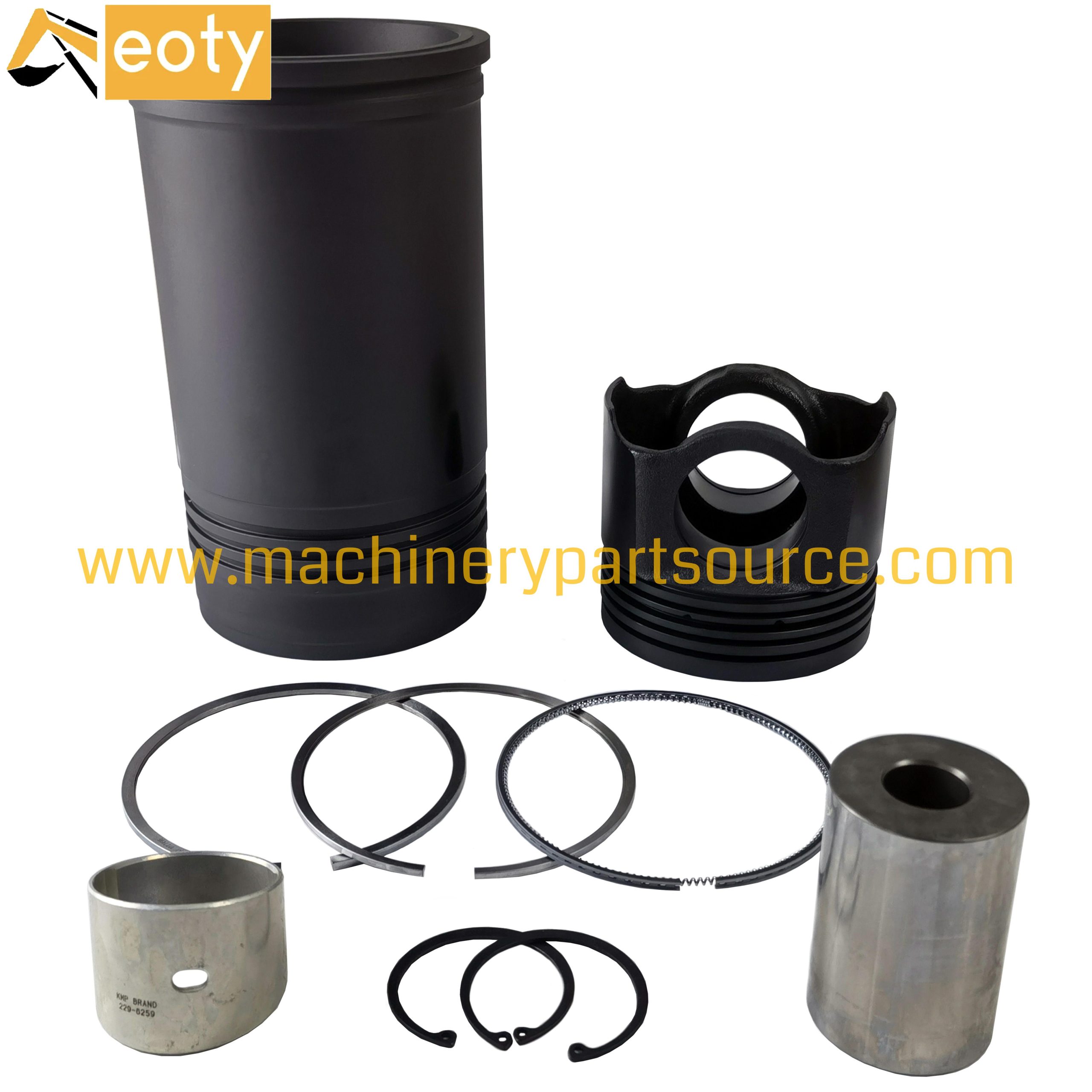

Caterpillar C15 Engine Cylinder Liner Kit 197-9322 Piston Set 346-6615 Ring 310-4188 Heavy Duty Parts

MOQ: 1pcs Price: Negotiable

Part No.: 2003-2015 / 1998-2007
Category: Diesel Engine Parts

Chat on WhatsApp

Send OEM number, quantity, destination, or photos. We will reply with quotation, lead time, and fitment notes.

Fitment check OEM number, engine model, and machine model confirmation.

Manual quote Price, MOQ, stock, lead time, and replacement options.

Export support Packing notes, mixed order support, and shipping details.

Product Details

C15 Cylinder Liner Kit 197-9322 Piston Set 346-6615 Ring 310-4188 For Caterpiilar Machinery Engine Repair Parts Set

Product Overview

This comprehensive Caterpillar C15 Cylinder Liner Kit is a critical engine rebuild solution for heavy-duty machinery operating in global markets. Designed for superior performance and longevity, this kit includes genuine-quality components: Cylinder Liner (Part No. 197-9322), Piston Set (Part No. 346-6615), and Piston Ring Set (Part No. 310-4188). Sourced from ISO-certified manufacturing partners, this kit is ready for immediate shipment to major industrial hubs in North America, Europe, Asia-Pacific, the Middle East, and Africa, ensuring minimal downtime for your fleet.

Key Features & Benefits

OEM-Spec Quality: Manufactured to meet or exceed original Caterpillar specifications for a precise fit and reliable performance.
Enhanced Durability: Features advanced cast-iron liners with superior wear resistance and high-strength aluminum alloy pistons designed for extreme combustion pressures.
Improved Sealing: Premium chrome-faced piston rings provide exceptional oil control and compression sealing, reducing blow-by and extending engine life.
Complete Solution: All critical components (liner, piston, rings) are pre-matched in one kit, simplifying inventory management and ensuring installation compatibility.
Cost-Effective Rebuild: A direct replacement for OEM parts, offering significant savings over dealer pricing without compromising on quality.

Technical Specifications

Component	Part Number	Material	Specifications
Cylinder Liner	197-9322	Cast Iron (Hardened)	Standard Bore; Wet Type; O-Ring Grooved
Piston Set	346-6615	Aluminum Alloy (Steel Insert)	Articulated Type; 6.0:1 Compression Ratio; Includes Wrist Pin & Snap Rings
Piston Ring Set	310-4188	Steel (Chrome/Nitride Coated)	3-Piece Set (Compression & Oil Rings); 4.0mm x 4.0mm x 6.0mm Profile
Kit Contents	197-9322 / 346-6615 / 310-4188	N/A	1x Liner, 1x Piston, 1x Ring Set (Per Cylinder)

OEM Cross-Reference

This kit is a direct replacement for the following original Caterpillar part numbers:

Cylinder Liner: 197-9322 (Also replaces OEM: 7N-7501, 9Y-8327)
Piston Set: 346-6615 (Also replaces OEM: 7E-5170, 4N-8312)
Ring Set: 310-4188 (Also replaces OEM: 7E-5171, 6N-9411)

Note: Always verify your engine’s serial number prefix (e.g., 5EK, 2KS) to confirm compatibility before ordering.

Compatibility

Engine Model: Caterpillar C15 (ACERT & Pre-ACERT)
Vehicle Applications: Caterpillar 735, 740, and 745 Articulated Trucks; 345C, 349D, 365C, 374D, 385C Excavators; D9T, D10T Dozers; 24H Motor Graders; 773F, 775F Off-Highway Trucks; and various industrial & marine applications.
Years: 2003-2015 (C15 ACERT), 1998-2007 (C15 Pre-ACERT)

Global Supply & Distribution

Worldwide Shipping: We offer fast, reliable shipping via DHL, FedEx, UPS, and Sea Freight to all major ports and industrial centers.
Key Markets: USA (Houston, Los Angeles, Chicago), Canada (Toronto, Vancouver), Europe (Rotterdam, Hamburg), Asia-Pacific (Singapore, Shanghai, Dubai), Middle East (Jebel Ali, Dammam), Africa (Johannesburg, Lagos).
Lead Times: In-stock items ship within 24-48 hours. Bulk orders for multiple kits (e.g., 6 or 12 cylinder sets) may require 5-7 working days for consolidation.
Trade Compliance: We provide full export documentation including Certificate of Origin, Packing List, and Commercial Invoice for hassle-free customs clearance.

Quality Assurance

Manufacturing Standards: Produced in ISO 9001:2015 certified facilities, adhering to strict dimensional tolerances (e.g., liner bore tolerance within 0.02mm).
Testing: Each component undergoes 100% inspection for hardness, surface finish, and dimensional accuracy. Ring sets are tested for tangential tension and end gap.
Warranty: 12-month warranty against manufacturing defects in materials or workmanship, covering premature wear, cracking, or improper fitment.

FAQ

Q1: Is this kit suitable for a Caterpillar C15 engine with serial number prefix 2KS?

A: Yes, the 197-9322 liner and 346-6615 piston are standard for C15 engines with 2KS and 5EK prefixes. However, we recommend verifying your engine’s specific configuration (e.g., standard vs. oversized bore) by checking the cylinder block stamping, as some late-model ACERT engines may require a different piston profile.

Q2: Do I need to replace the connecting rod when installing this piston set?

A: No, the 346-6615 piston is designed to fit the standard C15 connecting rod (Part No. 7E-5172). You should, however, inspect the rod for wear and replace the wrist pin bushing if necessary. The kit includes a new wrist pin and snap rings, but the connecting rod itself is reused if in good condition.

Q3: What is the recommended installation procedure for the 310-4188 ring set?

A: Install the rings with the “TOP” marking facing upwards. Stagger the ring gaps 120° apart (do not align with the wrist pin). The top compression ring (chrome-faced) should be installed first, followed by the second compression ring (tapered face), and finally the oil ring (with expander). Lubricate with clean engine oil before inserting into the liner. Refer to the Caterpillar service manual (SENR1085) for torque specifications and final assembly steps.
