Product Details

Product Overview

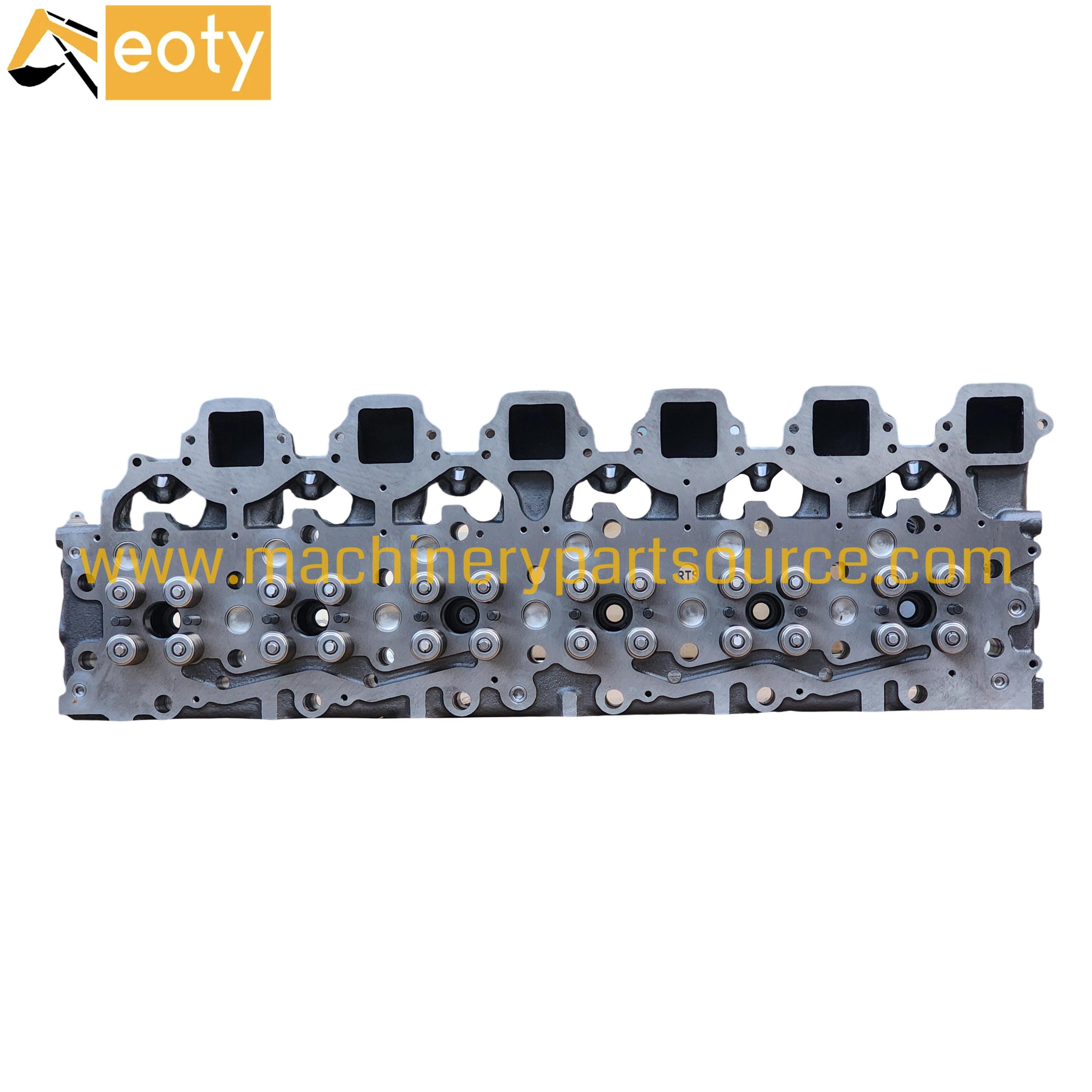

This premium Caterpillar 3406 Cylinder Head Assembly (Part Number: 1105096) is a direct replacement component engineered for heavy-duty diesel engines. Designed with a specific square hole configuration, this assembly ensures optimal combustion chamber sealing and heat dissipation. We ship globally to major industrial markets including North America, Europe, the Middle East, and Asia-Pacific, providing reliable logistics to support your heavy equipment maintenance and repair operations.

Key Features & Benefits

• Precision Engineering: Manufactured to strict OEM specifications for a perfect fit and reliable performance in Caterpillar 3406 engines.
• Superior Material: Constructed from high-grade cast iron for exceptional strength, thermal stability, and resistance to warping under extreme operating conditions.
• Enhanced Durability: The square hole design improves coolant flow and reduces stress concentration, extending the service life of the cylinder head.
• Rigorous Testing: Each assembly undergoes pressure testing and dimensional inspection to guarantee leak-free operation and immediate installation readiness.
• Cost-Effective Solution: A reliable aftermarket alternative to OEM parts, offering significant cost savings without compromising on quality or performance.

Technical Specifications

OEM Cross-Reference

This cylinder head assembly is a direct replacement for the following OEM part numbers:

• Caterpillar Part Number: 1105096
• Alternative/Cross-Reference Numbers: 7W3054, 9Y4001 (Please verify compatibility with your specific engine serial number)

Compatibility

This cylinder head is specifically designed for the Caterpillar 3406 engine family. Typical applications include:

• Heavy-Duty Trucks: Caterpillar 3406-powered on-highway trucks.
• Construction Equipment: Excavators, bulldozers, and loaders using the 3406 engine.
• Industrial & Marine: Generator sets, pumps, and marine propulsion systems.

Note: Always confirm your engine’s serial number and the specific “square hole” design requirement before ordering to ensure correct fitment.

Global Supply & Distribution

• Worldwide Shipping: We offer reliable shipping to all major global destinations.
• Key Markets: North America (USA, Canada, Mexico), Europe (Germany, UK, Netherlands), Asia-Pacific (Australia, Singapore, UAE), Middle East (Saudi Arabia, Qatar).
• Fast Delivery: Efficient logistics to major ports and industrial hubs ensure minimal downtime for your operations.
• Export Expertise: We have extensive experience in international trade, ensuring smooth customs clearance and regulatory compliance.

Quality Assurance

• Manufacturing Standards: Produced in ISO 9001 certified facilities, adhering to strict quality control processes.
• Testing: Each cylinder head is 100% pressure tested and dimensionally checked before shipment.
• Warranty: Backed by a comprehensive 12-month warranty against manufacturing defects.

FAQ

Q1: Is this cylinder head a direct bolt-on replacement for my Caterpillar 3406 engine?
A: Yes, this assembly is designed as a direct replacement. However, due to variations in the 3406 series, we strongly recommend verifying the “square hole” configuration and comparing it with your original part. Always check your engine’s serial number for 100% compatibility.

Q2: What is the advantage of the “square hole” design on this cylinder head?
A: The square hole design is specific to certain 3406 engine variants. It is engineered to improve coolant circulation around the valve seats and reduce thermal stress, which helps prevent cracking and prolongs the head’s service life in demanding applications.

Q3: What is the recommended installation procedure for this cylinder head?
A: Installation should be performed by a qualified diesel mechanic. Key steps include: cleaning the engine block surface, using a new cylinder head gasket, and tightening the head bolts in the manufacturer’s specified sequence and torque pattern. Always refer to the Caterpillar service manual for your specific engine model.
