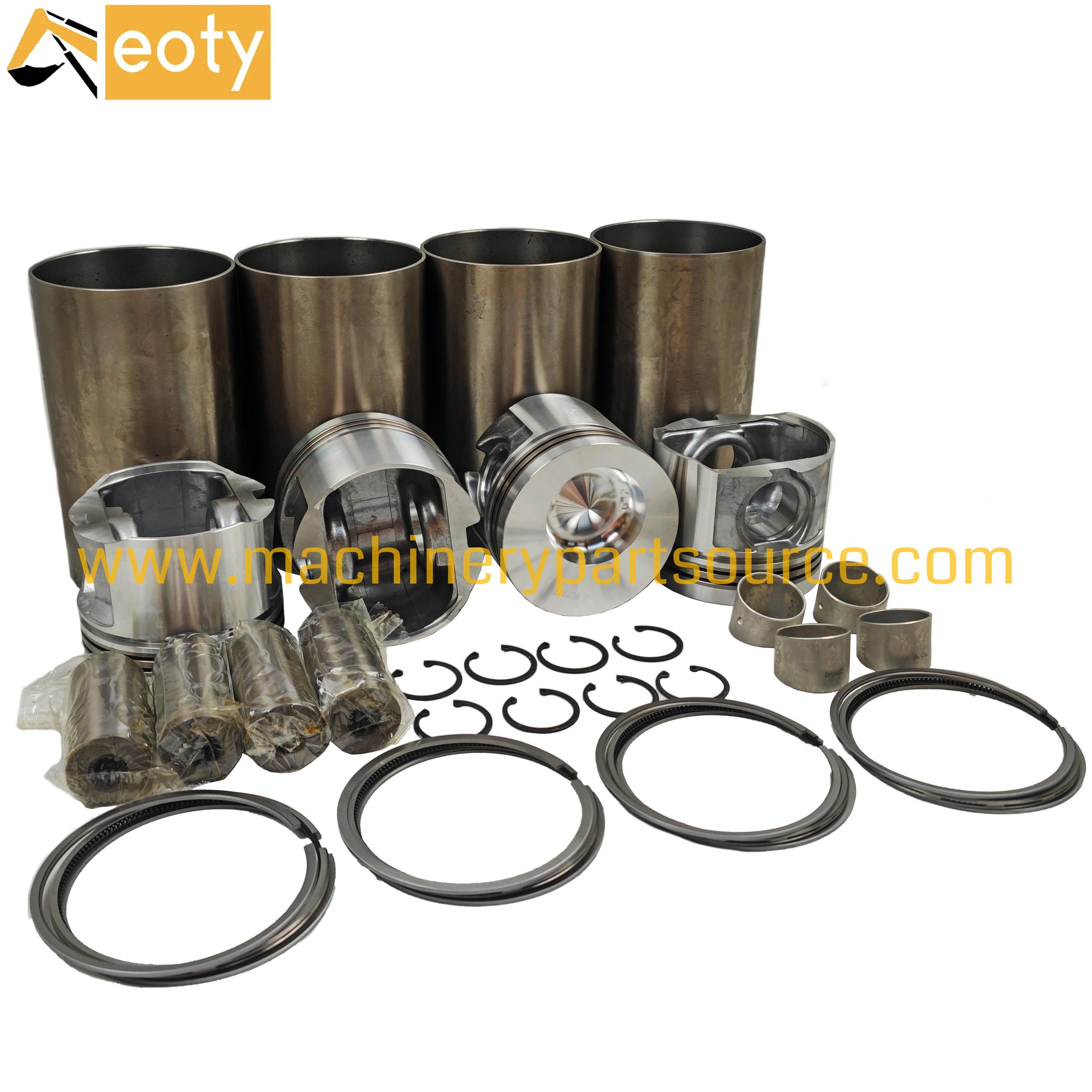

Caterpillar 3204 Engine Cylinder Liner Kit & Piston Set 9L7737 1W1661 9N5082 Heavy Duty

MOQ: 1pcs Price: Negotiable

Part No.: 9L7737, 1W1661, 9N5082
Engine Model: Caterpillar 3204
Application: Industrial & Construction Machinery
Material: Ductile Iron (Liner) / Forged Steel (Piston)
Warranty: 12 Months

Chat on WhatsApp

Send OEM number, quantity, destination, or photos. We will reply with quotation, lead time, and fitment notes.

Fitment check OEM number, engine model, and machine model confirmation.

Manual quote Price, MOQ, stock, lead time, and replacement options.

Export support Packing notes, mixed order support, and shipping details.

Product Details

3204 Cylinder Liner Kit Piston Set 9l7737 1w1661 9n5082 For Caterpillar Machinery Engine Repair Parts Set

Product Overview

This high-quality Cylinder Liner Kit and Piston Set is specifically engineered for the Caterpillar 3204 diesel engine. Designed for heavy-duty machinery, this comprehensive repair kit includes critical components to restore engine compression, power, and efficiency. We serve a global clientele, with major markets in North America, Europe, Asia-Pacific, the Middle East, and South America, ensuring reliable supply chains for mining, construction, and agricultural applications.

Key Features & Benefits

Premium Durability: Manufactured from high-grade cast iron and alloy steel to withstand extreme combustion pressures and temperatures.
Precision Engineering: Each component is machined to exact OEM tolerances, ensuring a perfect fit and optimal sealing for maximum compression.
Enhanced Performance: Restores lost horsepower, reduces oil consumption, and minimizes blow-by gases.
Complete Kit Solution: Includes all necessary components for a comprehensive top-end overhaul, saving procurement time and costs.
Corrosion Resistance: Advanced surface treatments protect against wear, pitting, and corrosion in harsh operating environments.

Technical Specifications

Specification	Details
Part Numbers	9L7737, 1W1661, 9N5082
Engine Model	Caterpillar 3204
Kit Contents	Cylinder Liner, Piston, Piston Rings, Piston Pin, Retainers
Material	Ductile Iron (Liner) / Forged Steel (Piston)
Application	Industrial & Construction Machinery
Warranty	12 Months

OEM Cross-Reference

This kit is a direct replacement for the following OEM part numbers:

9L7737 (Cylinder Liner)
1W1661 (Piston Assembly)
9N5082 (Piston Ring Set)

Alternative Part Numbers: 3204-01, 3204-02

Compatibility

Engine Models: Caterpillar 3204
Vehicle/Machinery Applications: Caterpillar Backhoe Loaders, Skid Steer Loaders, Industrial Engines, and Agricultural Tractors.
Year Ranges: Compatible with most 3204 engine variants produced from the 1980s through early 2000s.

Global Supply & Distribution

Worldwide Shipping: We offer fast and reliable shipping to all major global ports.
Major Markets Served: USA, Canada, UK, Germany, Australia, UAE, Saudi Arabia, Singapore, and South Africa.
Fast Delivery: Expedited shipping available to industrial centers like Houston, Dubai, Shanghai, and Rotterdam.
Trade Compliance: Experienced in international export documentation and customs clearance.

Quality Assurance

Manufacturing Standards: Produced in ISO 9001 certified facilities.
Testing: Each component undergoes rigorous dimensional inspection and pressure testing.
Warranty: Backed by a 12-month warranty against manufacturing defects.

FAQ

Q: Is this kit a direct fit for my Caterpillar 3204 engine?
A: Yes, this kit is precisely machined to match OEM specifications for the Caterpillar 3204 engine. However, we recommend verifying your engine serial number against the part numbers 9L7737, 1W1661, and 9N5082 to ensure compatibility.

Q: What is included in this cylinder liner kit?
A: The kit includes one cylinder liner, one piston, piston rings, a piston pin, and retaining clips. It provides all necessary components for a complete cylinder rebuild.

Q: How should I prepare the engine block before installation?
A: The cylinder bore must be clean, dry, and free of old gasket material. We recommend using a professional cylinder hone to ensure proper ring seating. Always lubricate the piston rings and cylinder wall with clean engine oil during assembly.
