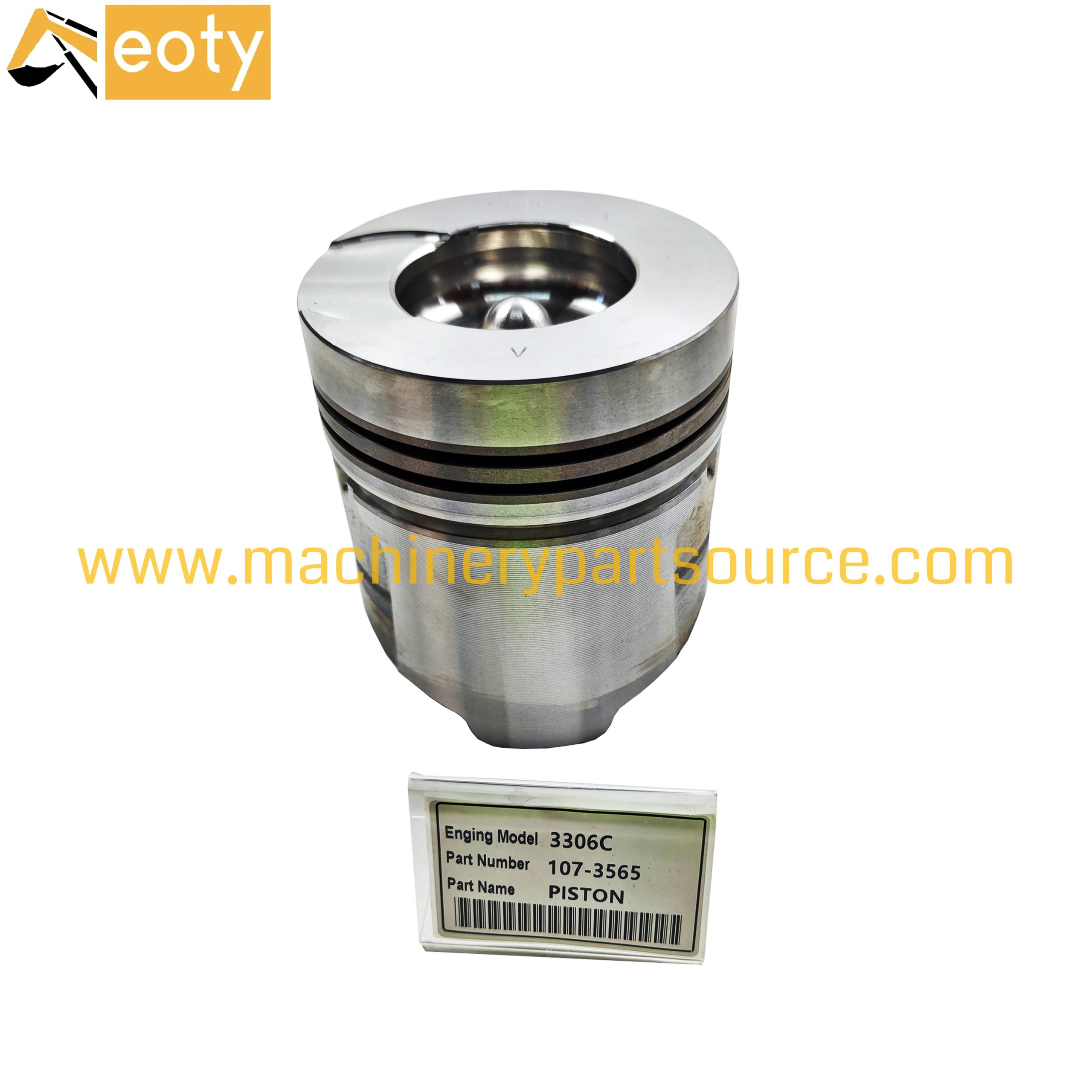

3306 3306C Piston with Pin 1073565 107-3565 for Caterpillar Engine Excavator

Product Details

Product Overview

This high-quality piston assembly, featuring the critical part number 1073565 / 107-3565, is specifically engineered for the Caterpillar 3306 and 3306C diesel engines. As a core component of the engine’s power cylinder group, this piston is designed to withstand the extreme pressures and temperatures found in heavy-duty machinery.

Manufactured to meet OEM specifications, this 1073565 piston provides a direct replacement for worn or damaged units. It is a vital part for maintaining compression, reducing blow-by, and ensuring optimal combustion efficiency in Caterpillar equipment used across various industries, including construction, mining, and material handling. The assembly includes the piston body and a precision-machined wrist pin for a secure and reliable connection to the connecting rod.

Key Features & Benefits

• OEM Standard Fitment: Manufactured to match the exact dimensions, weight, and material specifications of the original Caterpillar part, ensuring a direct bolt-in replacement without modifications.
• Superior Durability: Constructed from high-strength aluminum alloy with advanced heat treatment to resist thermal fatigue, cracking, and deformation under high-stress operating conditions.
• Precision Pin Fit: The included wrist pin is case-hardened and precisely ground to minimize clearance, reducing noise and extending the life of the piston and connecting rod bushings.
• Enhanced Oil Control: Features precisely machined ring grooves and oil return holes to optimize oil control, reduce consumption, and minimize carbon buildup in the combustion chamber.
• Reduced Downtime: As a critical wear item, replacing the piston with this high-quality 1073565 unit during an overhaul ensures reliable engine performance and significantly reduces the risk of unexpected breakdowns in the field.
• Rigorous Quality Control: Each piston undergoes strict inspection for dimensional accuracy, material hardness, and surface finish before shipment.

Technical Specifications

OEM Cross-Reference

This piston assembly is a direct replacement for the following original Caterpillar part numbers. Please verify your existing part number before ordering.

• Caterpillar OEM: 1073565, 107-3565
• Common Alternative: 7N-5806 (Note: Verify application specifics)

Note: This is a non-OEM replacement part manufactured to meet or exceed the performance of the original equipment manufacturer’s specifications.

Compatibility

This 1073565 piston is commonly used for rebuilding and maintaining Caterpillar engines in the following applications:

• Engine Models: Caterpillar 3306, 3306C, 3306 DITA (Direct Injection Turbocharged Aftercooled)
• Excavators: Commonly used in models like the CAT 320, 325, 330 series (Verify specific year and engine code)
• Loaders & Bulldozers: CAT 950, 966, D6, D7 series with 3306 engine
• Trucks & Buses: Caterpillar-powered highway and off-highway trucks
• Industrial & Mining: CAT R1300, R1300G Load Haul Dump (LHD) units
• Other Equipment: Forklifts, generators, and marine applications utilizing the 3306 engine block

Fitment is inferred based on standard engine application data. Always cross-reference your specific engine serial number and part number for guaranteed compatibility.

Global Supply & Distribution

Our supply chain is strategically positioned to serve the global B2B market for heavy-duty engine parts. We offer reliable logistics solutions to ensure your operations stay productive.

• Worldwide Shipping: We ship to all major industrial regions including North America, Europe, Southeast Asia, the Middle East, Africa, and Oceania.
• Major Ports & Hubs: Fast and efficient delivery to key ports such as Rotterdam, Shanghai, Los Angeles, Dubai, and Singapore.
• Bulk & Wholesale: Specialized in handling bulk orders for fleet maintenance, engine rebuild shops, and dealerships.
• Export Compliance: All products are packaged and documented in compliance with international trade standards for smooth customs clearance.

Quality Assurance

We are committed to providing parts that deliver reliable performance and longevity. Our quality process ensures you receive a product you can trust.

• Manufacturing Standards: Produced in ISO-certified facilities using advanced casting and machining technology.
• Testing: Each batch undergoes dimensional checks, material composition analysis, and hardness testing. A Machinery Test Report and Video Outgoing Inspection are available upon request.
• Warranty: Backed by a standard 6-month warranty against manufacturing defects in materials and workmanship.

FAQ

Q1: How can I confirm this 1073565 piston will fit my Caterpillar 3306 engine?

To ensure a perfect fit, please check the part number stamped on your existing piston. The primary numbers for this unit are 1073565 or 107-3565. Additionally, verify your engine’s serial number and the cylinder liner bore size (standard or oversize). This piston is designed for the standard OEM bore diameter of the 3306 engine.

Q2: Does this kit include piston rings? What other parts do I need for a rebuild?

This product is strictly the piston assembly and wrist pin. It does not include piston rings, cylinder liners, or bearings. For a complete engine overhaul, we recommend purchasing a full overhaul gasket kit and a set of piston rings (e.g., part number 7N-5806 or equivalent) separately to ensure all wear items are replaced simultaneously.
