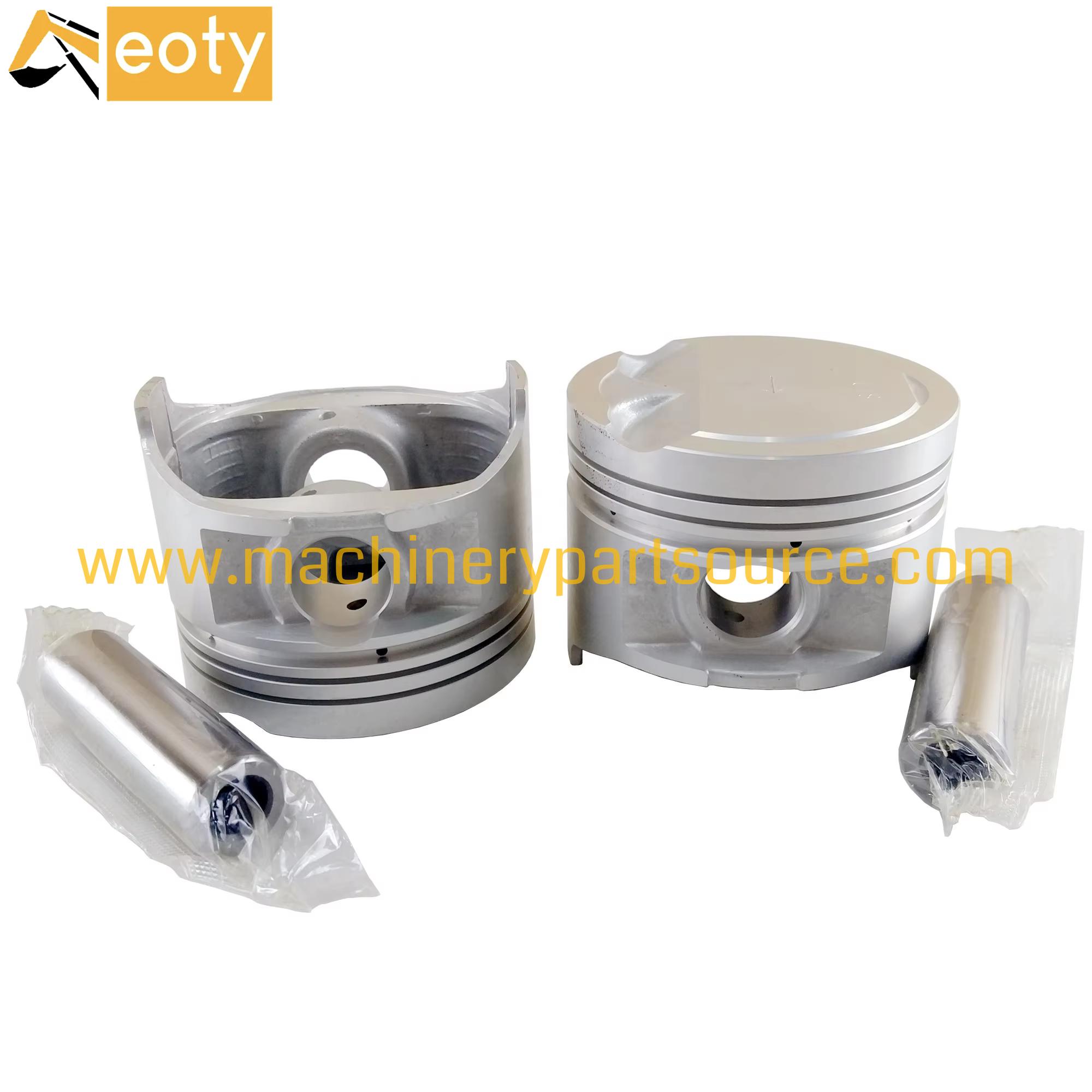

13101-11130 13101-11131 Std 74.00mm Piston Sub-Assy for Toyota 5E-FE 1.5L Engine

Product Details

Product Overview

This is a high-quality Engine Piston Sub-Assembly, specifically designed as a direct replacement for the Toyota 5E-FE and 5E-FHE 1.5L (L4) gasoline engines. Featuring the OEM part numbers 13101-11130 and 13101-11131, this piston is manufactured to standard size (STD) specifications with a bore diameter of 74.00mm.

This piston sub-assembly includes the piston pin, providing a complete drop-in component for engine rebuilding or repair. It is commonly used in various Toyota models, including the Corolla, Tercel, Paseo, and Cynos, which utilize the 5E series engine platform. As a critical engine component, this piston ensures proper compression, efficient combustion, and reliable engine performance.

Manufactured under strict quality controls, this part is an ideal solution for workshops, distributors, and engine rebuilders looking for a cost-effective, high-performance alternative to OEM parts without compromising on fitment or durability.

Key Features & Benefits

• Precision Engineering: Manufactured to exact OEM specifications (STD 74.00mm bore) for a perfect fit in 5E-FE and 5E-FHE engine blocks.
• Complete Kit: Comes as a full sub-assembly with the piston pin (18.00mm diameter) pre-installed, reducing assembly time and ensuring correct installation.
• Durable Construction: Made from high-strength aluminum alloy, providing excellent thermal conductivity and resistance to wear under high-temperature operating conditions.
• Optimal Compression: Designed with a compression height of 30.00mm and total length of 58.80mm to maintain the correct compression ratio for the 1.5L engine.
• Rigorous Testing: Each batch undergoes machinery test reports and outgoing video inspections to guarantee dimensional accuracy and structural integrity.
• Cost-Effective Solution: Offers a reliable aftermarket alternative to expensive dealer parts, delivering OEM-level quality at a competitive price point for B2B buyers.

Technical Specifications

OEM Cross-Reference

This piston sub-assembly is a direct replacement for the following original equipment manufacturer (OEM) part numbers. Use this cross-reference to verify compatibility with your existing engine components.

• OEM Number 1: 13101-11130
• OEM Number 2: 13101-11131
• Alternative Reference: 1310111131

Compatibility

This piston is specifically engineered for use in the following engine and vehicle applications. Please verify your engine code before purchasing to ensure correct fitment.

Engine Codes: 5E-FE, 5E-FHE, 5E (1.5L L4)

Vehicle Applications (commonly used for):

• Toyota Corolla (with 5E-FE engine)
• Toyota Tercel (with 5E-FE engine)
• Toyota Paseo (with 5E-FE engine)
• Toyota Cynos (with 5E-FE engine)

Note: This part is designed for gasoline 1.5L engines only, not for diesel variants. Always confirm your engine code (located on the engine block) matches 5E-FE or 5E-FHE before installation.

Global Supply & Distribution

We offer reliable worldwide shipping and maintain a robust supply chain to serve international B2B clients efficiently. Our inventory management ensures fast dispatch for bulk orders and emergency replacements.

• Major Markets Served: North America (USA, Canada, Mexico), Europe (UK, Germany, France, Spain, Italy), Asia-Pacific (Japan, Australia, Thailand, Indonesia), Middle East (UAE, Saudi Arabia), Africa, and South America.
• Shipping Capabilities: Express courier (DHL, FedEx, UPS) for samples or small orders; Sea freight (FCL/LCL) and Air freight for bulk and wholesale shipments to major ports and industrial centers.
• Export Experience: Our team is experienced in international trade documentation, customs clearance, and compliance with global automotive standards. We offer flexible packaging options (neutral, carbon box, or customized branding) to meet distributor requirements.

Quality Assurance

We prioritize quality and reliability to ensure our engine pistons meet the demanding requirements of professional workshops and rebuilders.

• Manufacturing Standards: Produced in ISO-compliant facilities using advanced casting and machining processes. Each piston is inspected for dimensional accuracy, surface finish, and material integrity.
• Testing Procedures: Machinery Test Reports are provided for each production batch, verifying bore size, pin fit, and compression height. Video Outgoing Inspection is available upon request for large orders.
• Warranty: Backed by a 6-month warranty (standard) or a 12-month / 50,000-kilometer warranty (optional), covering manufacturing defects in materials and workmanship.

FAQ

Q1: Is this piston a direct fit for my Toyota Corolla with a 5E-FE engine?
A: Yes, this piston (STD 74.00mm) is designed as a direct replacement for the 5E-FE and 5E-FHE 1.5L engines. It matches the OEM specifications for bore diameter, pin size, and compression height. However, we recommend verifying your engine code on the block to ensure it is not a different variant (e.g., 4E-FE).

Q2: Does this piston come with the piston rings and pin?
A: This product is the “Piston Sub-Assembly,” which includes the piston and the piston pin (18.00mm). It does not include piston rings. You will need to purchase piston rings separately, typically sold as a set for the 5E-FE engine.

Q3: Can I use this piston in a 5E-FHE engine, and what is the difference?
A: Yes, this piston is compatible with both 5E-FE and 5E-FHE engines. The 5E-FHE is a higher-output version, but the piston dimensions (bore, pin, compression height) remain the same as the standard 5E-FE. The compression ratio is achieved through cylinder head and camshaft differences, not the piston itself. Always check the piston-to-valve clearance if rebuilding a high-performance FHE engine.
